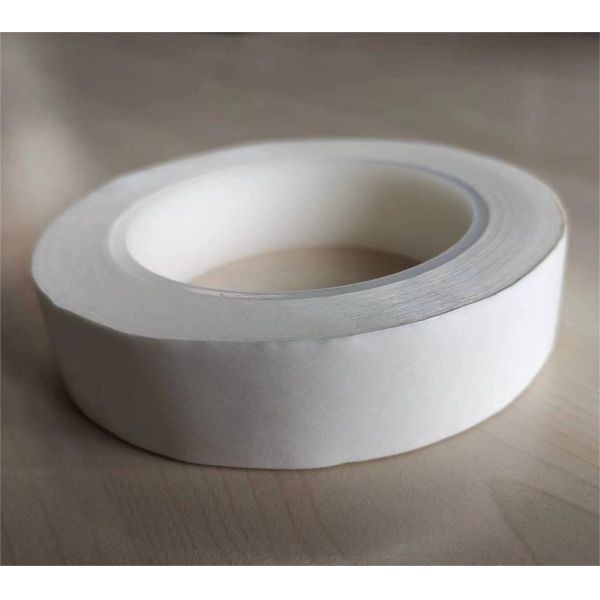

F-Class Aramid Paper Insulation Tape Electrical Insulation Tape

Model Number : 432/452/472

Place of Origin : China

MOQ : 500 SQ.M

Price : basing on size and quantity

Payment Terms : T/T

Supply Ability : 20000rolls

Delivery Time : about 30 days

Packaging Details : cartons

Material : Aramid paper

Adhesive : acrylic pressure-sensitive adhesive

Thickness : 0.105/0.13/0.18mm

Tensile Strength : ≥ 30/45/90 N/10mm

Adhesion Strength : ≥ 12.0N/25mm

Breakdown Voltage : ≥ 1.8/2.4/2.8kV

Long-term Temperature Resistance : F class/155℃

Usage : insulation wrapping

Contact Now

F-Class Aramid Paper Insulation Tape Electrical Insulation Tape

Product Overview

The F-Class Aramid Paper Insulation Tape is manufactured by combining an aramid paper substrate with a flame-retardant acrylic pressure-sensitive adhesive. It offers excellent electrical insulation performance, meets the F-class (155°C) heat resistance rating, provides high dielectric strength and superior tear resistance, and complies with relevant flame-retardancy standards.

Technical Specifications

Parameters	Value
Thickness	0.105/0.13/0.18mm
Long-term Temperature Resistance	F class/155℃

Key Advantages

High-temperature Insulation
Heat-resistant up to 155°C, maintains stable insulation under high temperatures, suitable for motors and transformers.
High Mechanical Strength
Tear-resistant, wear-resistant, withstands bending and vibration, ensuring strong reliability.
Flame-retardant Safety
Compliant with flame-retardancy standards, effectively inhibits flame spread.

Applications

Insulation Wrapping for Motors and Transformers
Used for insulation and fixation of windings and coils.
High-temperature Cable Tying and Protection
Suitable for wire harness protection in fields such as metallurgy and new energy.
Internal Insulation in Electronic Devices
Used for isolation and fixation of high-voltage components in power modules, etc.
